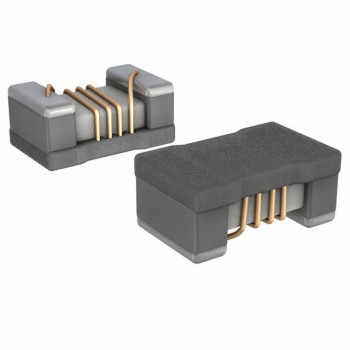

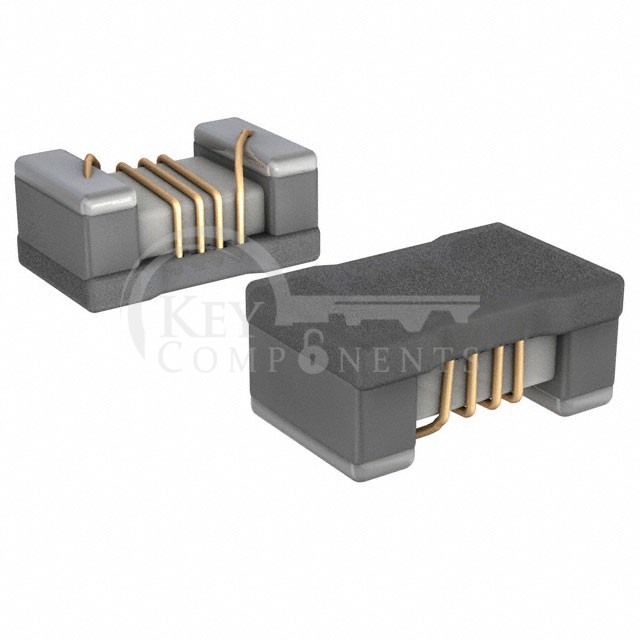

LQW21HN2R2J00L

LQW21HN2R2J00L

Manufacturer Part LQW21HN2R2J00L
Manufacturer Murata Electronics
Description FIXED IND 2.2UH 75MA 6.5 OHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±5%
Current Rating (Amps):75 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):6.5Ohm Max
Q @ Freq:30 @ 100MHz
Frequency - Self Resonant:300MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:10 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max):0.039" (1.00mm)
