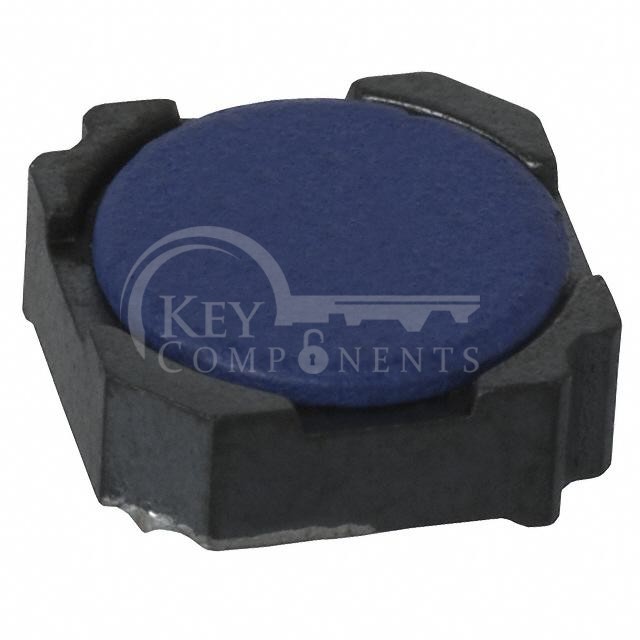

CDR7D28MNNP-220NC

CDR7D28MNNP-220NC

Manufacturer Part CDR7D28MNNP-220NC
Manufacturer Sumida America Components Inc.
Description FIXED IND 22UH 1.6A 120 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±25%
Current Rating (Amps):1.6 A
Current - Saturation (Isat):1.65A
Shielding:Shielded
DC Resistance (DCR):120mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max):0.118" (3.00mm)
