744031150

744031150

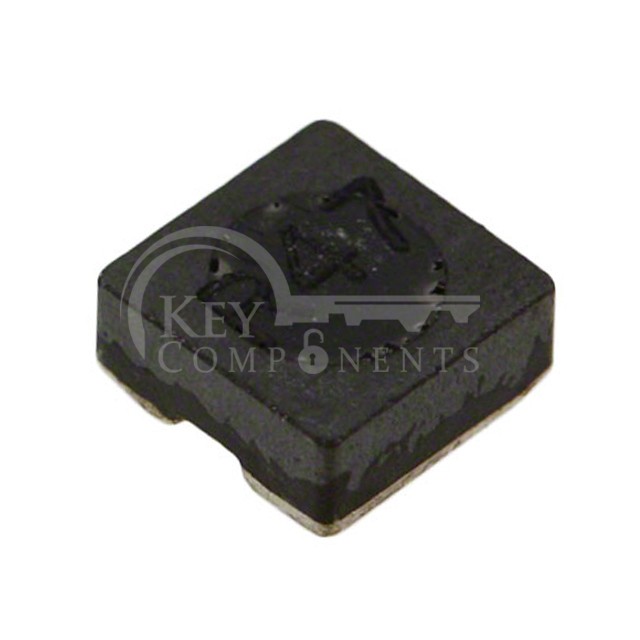

Manufacturer Part 744031150
Manufacturer Würth Elektronik
Description FIXED IND 15UH 620MA 285MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:15 µH
Tolerance:±30%
Current Rating (Amps):620 mA
Current - Saturation (Isat):450mA
Shielding:Shielded
DC Resistance (DCR):285mOhm Max
Q @ Freq:-
Frequency - Self Resonant:30MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:3816
Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):0.071" (1.80mm)
