744045002

744045002

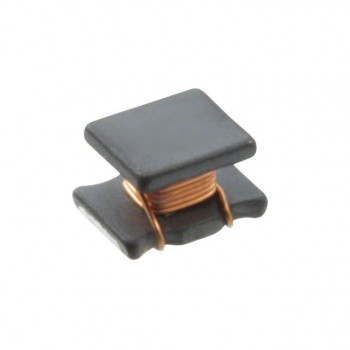

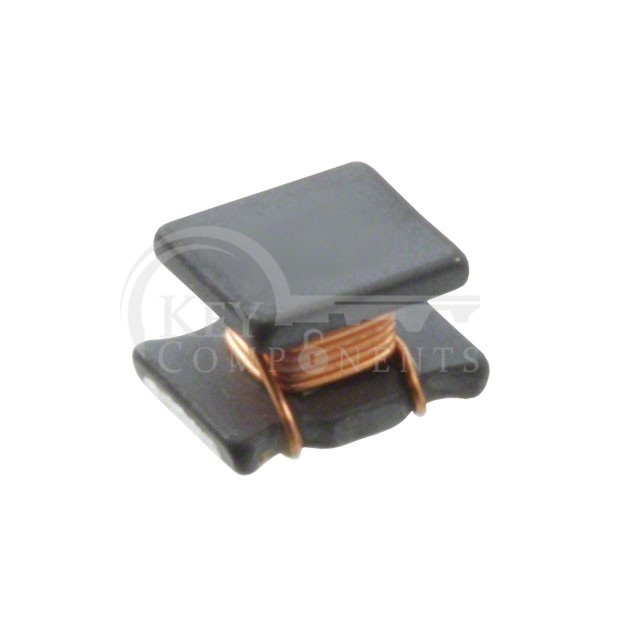

Manufacturer Part 744045002
Manufacturer Würth Elektronik
Description FIXED IND 2.2UH 1.6A 110MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):1.6 A
Current - Saturation (Isat):2.75A
Shielding:Unshielded
DC Resistance (DCR):110mOhm Max
Q @ Freq:40 @ 1MHz
Frequency - Self Resonant:80MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.114" (2.90mm)
