744062005

744062005

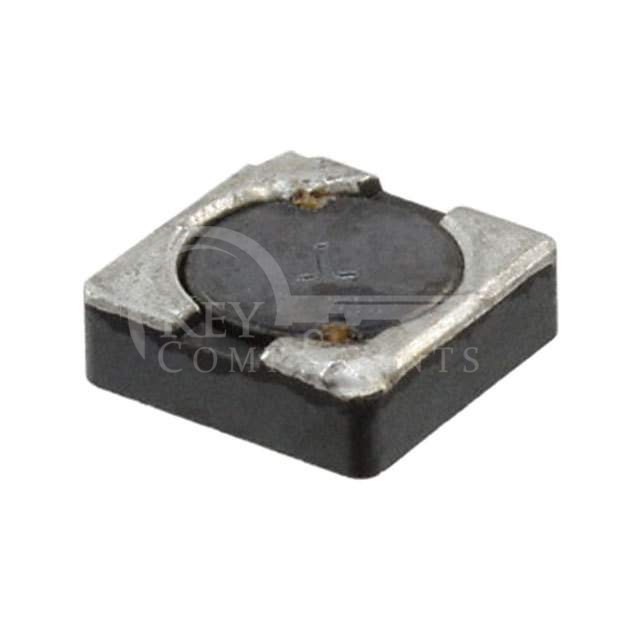

Manufacturer Part 744062005
Manufacturer Würth Elektronik
Description FIXED IND 5UH 2.15A 46 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:5 µH
Tolerance:±30%
Current Rating (Amps):2.15 A
Current - Saturation (Isat):2A
Shielding:Shielded
DC Resistance (DCR):46mOhm Max
Q @ Freq:-
Frequency - Self Resonant:50MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2727 (6868 Metric)
Supplier Device Package:-
Size / Dimension:0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max):0.098" (2.50mm)
