744313330

744313330

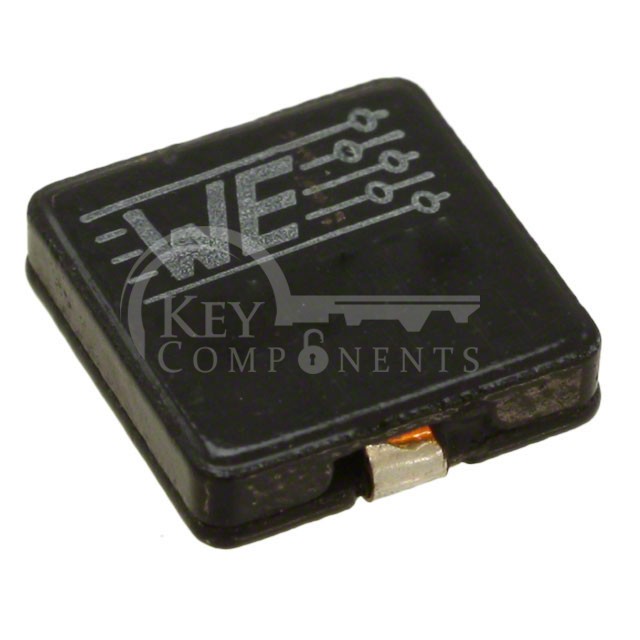

Manufacturer Part 744313330
Manufacturer Würth Elektronik
Description FIXED IND 3.3UH 12A 8.1 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Wirewound
Material - Core:-
Inductance:3.3 µH
Tolerance:±20%
Current Rating (Amps):12 A
Current - Saturation (Isat):14A
Shielding:Shielded
DC Resistance (DCR):8.1mOhm
Q @ Freq:-
Frequency - Self Resonant:30MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:1335
Size / Dimension:0.512" L x 0.504" W (13.00mm x 12.80mm)
Height - Seated (Max):0.138" (3.50mm)
