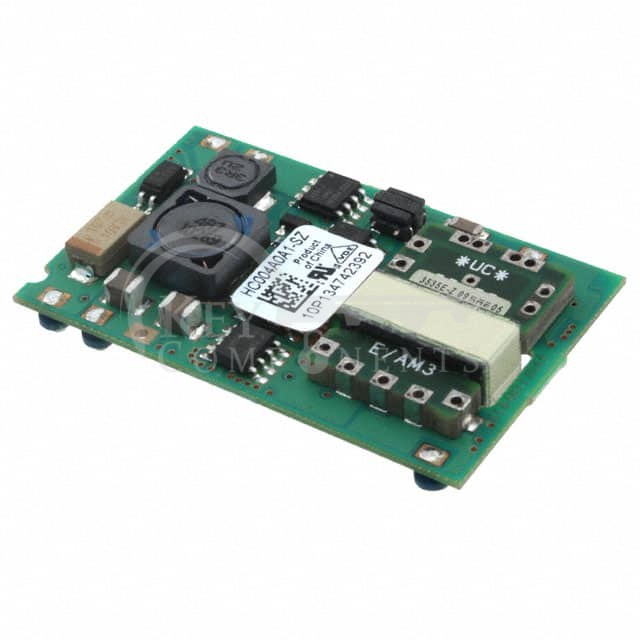

HC004A0A1-SZ
| Manufacturer Part | HC004A0A1-SZ |
|---|---|
| Manufacturer | ABB Power Electronics Inc. |
| Description | DC DC CONVERTER 5V 20W |
| Category | Power Supplies - Board Mount |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Isolated Module |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 18V |
| Voltage - Input (Max): | 36V |
| Voltage - Output 1: | 5V |
| Voltage - Output 2: | - |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 4A |
| Power (Watts): | 20 W |
| Voltage - Isolation: | 2.25 kV |
| Applications: | ITE (Commercial) |
| Features: | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature: | -40°C ~ 85°C |
| Efficiency: | 88% |
| Mounting Type: | Surface Mount |
| Package / Case: | 18-SMD Module, 6 Leads |
| Size / Dimension: | 1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.5mm) |
| Supplier Device Package: | - |
| Control Features: | Enable, Active Low |
| Approval Agency: | - |
| Standard Number: | - |
