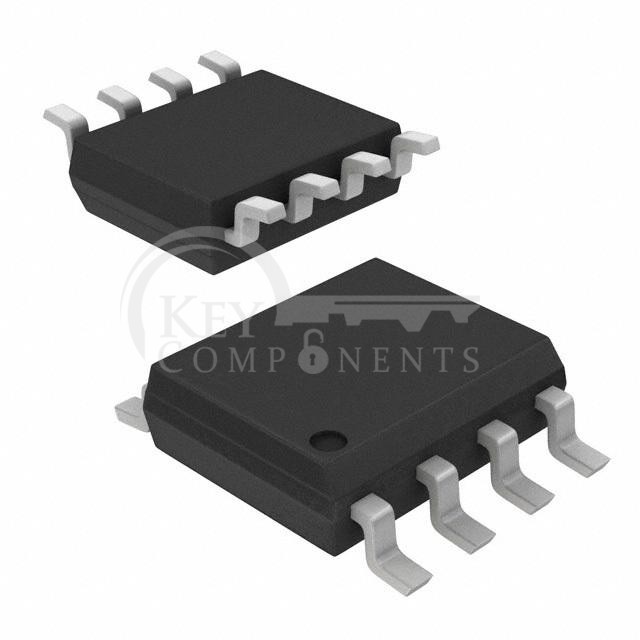

REF01CSZ-REEL
| Manufacturer Part | REF01CSZ-REEL |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC VREF SERIES 1% 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Reference Type: | Series |
| Output Type: | Fixed |
| Voltage - Output (Min/Fixed): | 10V |
| Voltage - Output (Max): | - |
| Current - Output: | 8 mA |
| Tolerance: | ±1% |
| Temperature Coefficient: | 65ppm/°C |
| Noise - 0.1Hz to 10Hz: | 30µVp-p |
| Noise - 10Hz to 10kHz: | - |
| Voltage - Input: | 13V ~ 33V |
| Current - Supply: | 1.6mA |
| Current - Cathode: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
