5022-102J

5022-102J

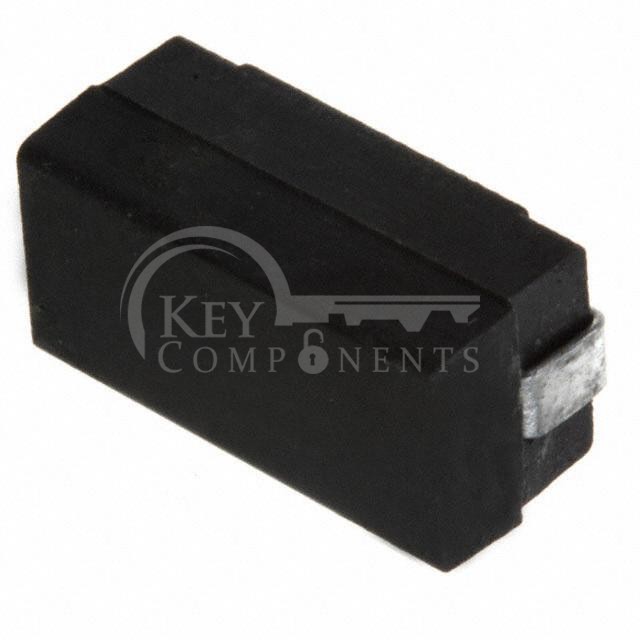

Manufacturer Part 5022-102J
Manufacturer API Delevan Inc.
Description FIXED IND 1UH 1.125A 290MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:-
Material - Core:Phenolic
Inductance:1 µH
Tolerance:±5%
Current Rating (Amps):1.125 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):290mOhm Max
Q @ Freq:50 @ 25MHz
Frequency - Self Resonant:200MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):0.230" (5.80mm)
