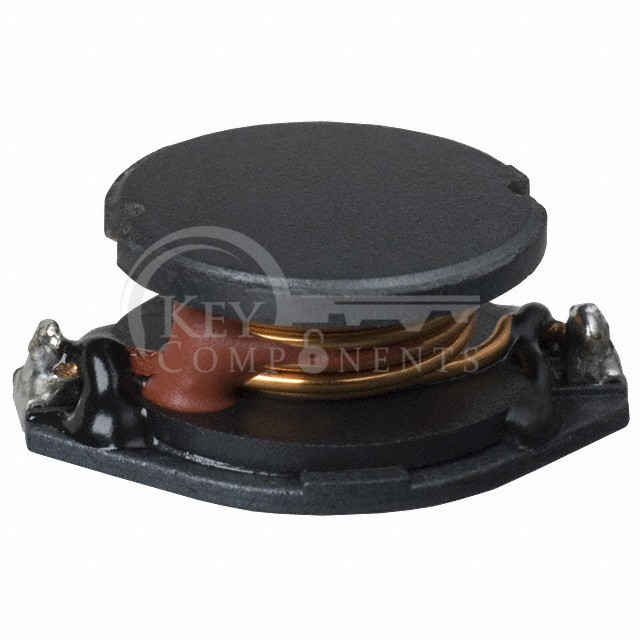

PM5022-102M-RC
| Manufacturer Part | PM5022-102M-RC |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 1MH 500MA 1.8 OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 1 mH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 500 mA |
| Current - Saturation (Isat): | 1A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.8Ohm |
| Q @ Freq: | 10 @ 2MHz |
| Frequency - Self Resonant: | 252kHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.720" L x 0.551" W (18.30mm x 14.00mm) |
| Height - Seated (Max): | 0.272" (6.90mm) |
