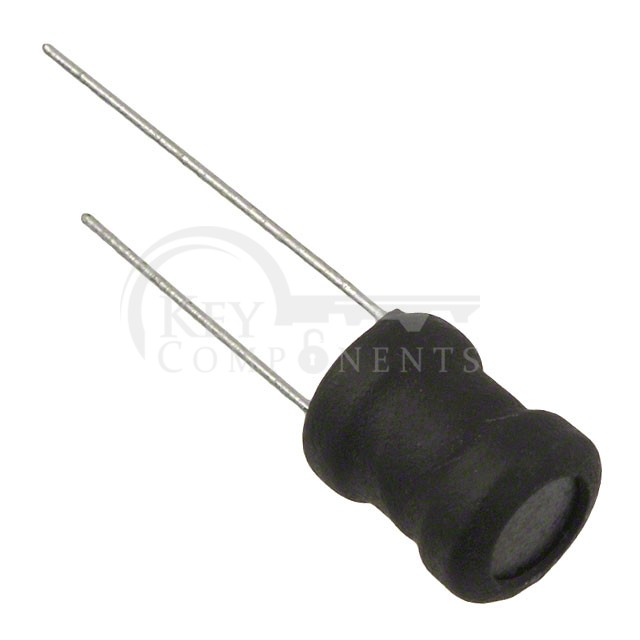

RLB0914-220KL
| Manufacturer Part | RLB0914-220KL |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 22UH 1.9A 90 MOHM TH |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 1.9 A |
| Current - Saturation (Isat): | 4.5A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 90mOhm Max |
| Q @ Freq: | 40 @ 2.52MHz |
| Frequency - Self Resonant: | 9MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 2.52 MHz |
| Features: | - |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Vertical Cylinder |
| Supplier Device Package: | - |
| Size / Dimension: | 0.343" Dia (8.70mm) |
| Height - Seated (Max): | 0.512" (13.00mm) |
