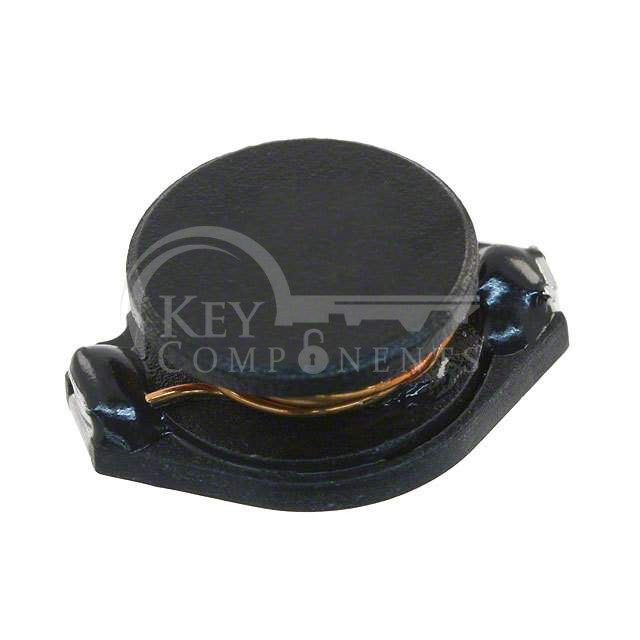

SDR1806-151KL

SDR1806-151KL

Manufacturer Part SDR1806-151KL
Manufacturer Bourns Inc.
Description FIXED IND 150UH 1.4A 270MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:150 µH
Tolerance:±10%
Current Rating (Amps):1.4 A
Current - Saturation (Isat):2.6A
Shielding:Unshielded
DC Resistance (DCR):270mOhm Max
Q @ Freq:23 @ 796kHz
Frequency - Self Resonant:5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max):0.272" (6.90mm)
