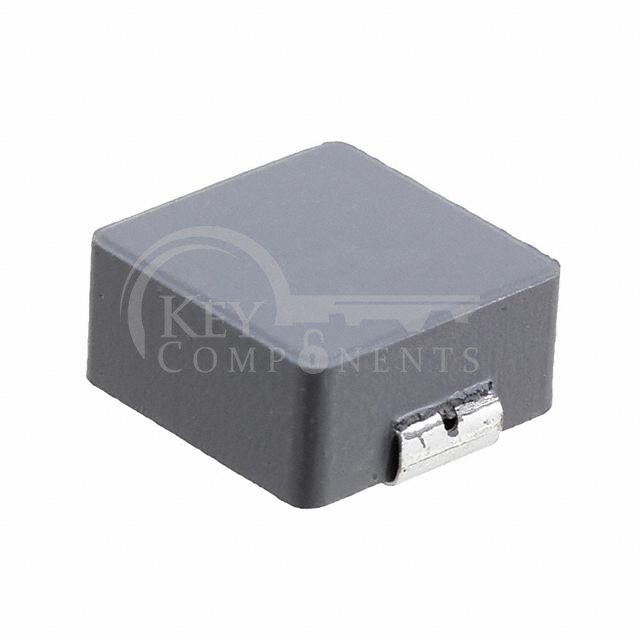

SRP1265A-2R2M

SRP1265A-2R2M

Manufacturer Part SRP1265A-2R2M
Manufacturer Bourns Inc.
Description FIXED IND 2.2UH 22A 4.2 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Carbonyl Powder
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):22 A
Current - Saturation (Isat):37A
Shielding:Shielded
DC Resistance (DCR):4.2mOhm Max
Q @ Freq:20 @ 100kHz
Frequency - Self Resonant:23MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max):0.252" (6.40mm)
Shipping
Shipping Type Ship Fee Lead Time
DHL $20.00-$40.00 (0.50 KG) 2-5 days
Fedex $20.00-$40.00 (0.50 KG) 2-5 days
UPS $20.00-$40.00 (0.50 KG) 2-5 days
TNT $20.00-$40.00 (0.50 KG) 2-6 days
EMS $20.00-$40.00 (0.50 KG) 3-7 days
REGISTERED AIR MAIL $2.5-$7 (0.50 KG) 20-35 days
Payment
Payment method Hand Fee
Telegraphic Transfer charge US$30.00 banking fee.
Paypal charge 4.0% service fee.
Credit Card charge 4% service fee.
Western Union charge US$0.00 banking fee.
Money Gram charge US$0.00 banking fee.
Guarantees
  • We provide 90 days warranty;
  • The Pre-Shipment Inspection (PSI) will be applied;
  • If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
  • If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
  • If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
  • Taxes & VAT will not be included;
Parts Tags
SRP1265A-2R2M Price
SRP1265A-2R2M Distributor
SRP1265A-2R2M Manufacturer
SRP1265A-2R2M Technical Data
SRP1265A-2R2M PDF
SRP1265A-2R2M Datasheet
SRP1265A-2R2M Picture
SRP1265A-2R2M Image
SRP1265A-2R2M Part
SRP1265A-2R2M Stock
SRP1265A-2R2M Inventory
SRP1265A-2R2M Rfq
SRP1265A-2R2M Inquiry
SRP1265A-2R2M Online Order
Quote Request
Min. :
1
Availability :
20485 pieces
