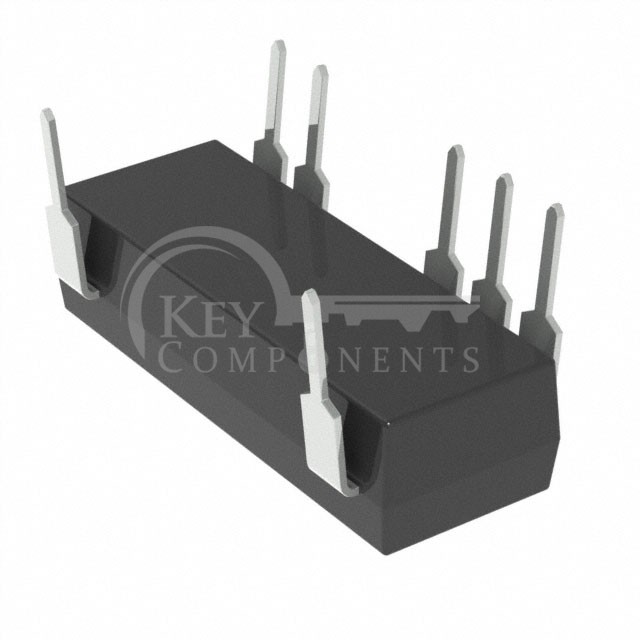

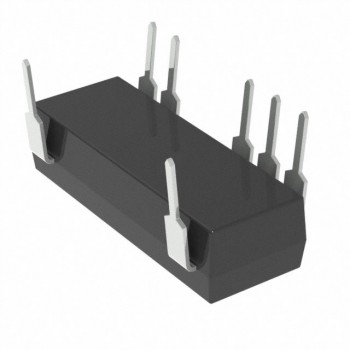

DCV010515P
| Manufacturer Part | DCV010515P |
|---|---|
| Manufacturer | Burr Brown |
| Description | DC DC CONVERTER 15V 1W |
| Category | Power Supplies - Board Mount |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Isolated Module |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 5.5V |
| Voltage - Output 1: | 15V |
| Voltage - Output 2: | - |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 67mA |
| Power (Watts): | 1 W |
| Voltage - Isolation: | 1.5 kV |
| Applications: | ITE (Commercial) |
| Features: | OTP, SCP |
| Operating Temperature: | -40°C ~ 85°C |
| Efficiency: | 84% |
| Mounting Type: | Through Hole |
| Package / Case: | 14-DIP (0.300", 7.62mm), 7 Leads |
| Size / Dimension: | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) |
| Supplier Device Package: | 7-PDIP |
| Control Features: | Enable, Active High |
| Approval Agency: | - |
| Standard Number: | - |
