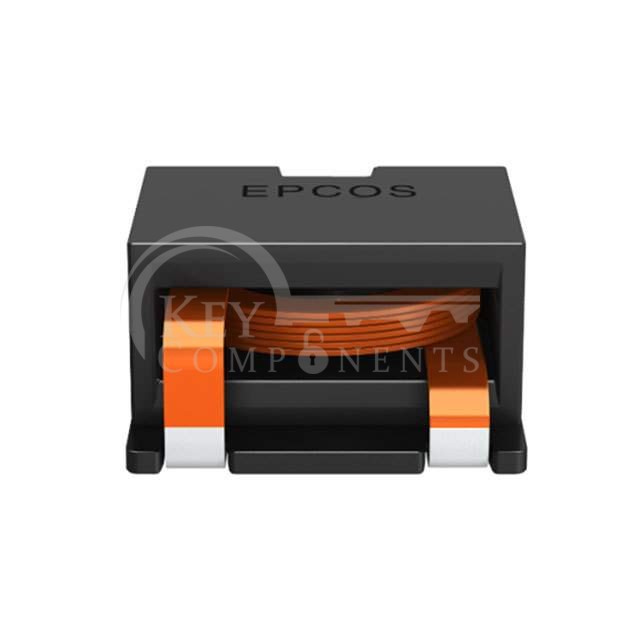

B82559A6682A016

B82559A6682A016

Manufacturer Part B82559A6682A016
Manufacturer EPCOS - TDK Electronics
Description FIXED IND 6.8UH 13.5A 6.8MOHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Last Time Buy
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:6.8 µH
Tolerance:±10%
Current Rating (Amps):13.5 A
Current - Saturation (Isat):15.5A
Shielding:Shielded
DC Resistance (DCR):6.8mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard, 3 Lead
Supplier Device Package:-
Size / Dimension:0.736" L x 0.681" W (18.70mm x 17.30mm)
Height - Seated (Max):0.343" (8.70mm)
