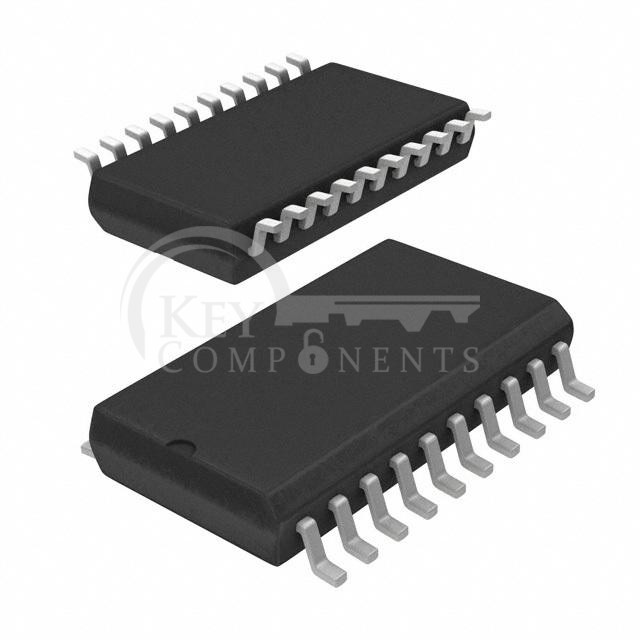

DM74ALS540AWMX
| Manufacturer Part | DM74ALS540AWMX |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC BUFFER INVERT 5.5V 20SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Logic Type: | Buffer, Inverting |
| Number of Elements: | 1 |
| Number of Bits per Element: | 8 |
| Input Type: | - |
| Output Type: | 3-State |
| Current - Output High, Low: | 15mA, 24mA |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 20-SOIC |
