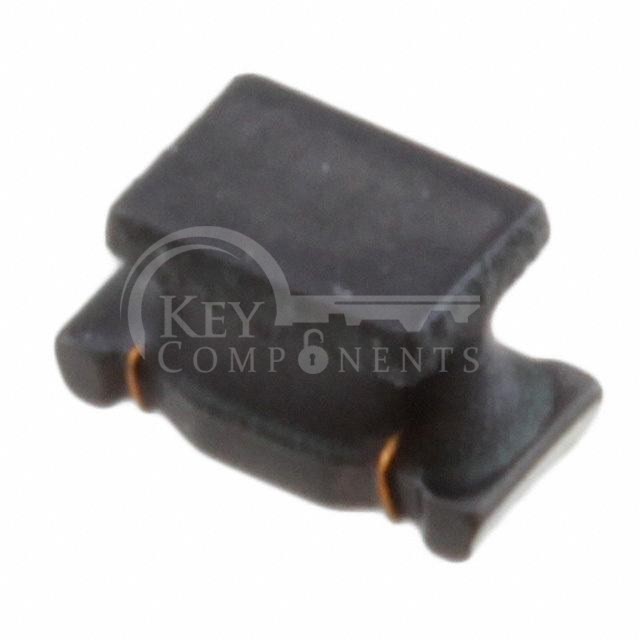

LQH31MN680K03L

LQH31MN680K03L

Manufacturer Part LQH31MN680K03L
Manufacturer Murata Electronics
Description FIXED IND 68UH 50MA 12.87OHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:68 µH
Tolerance:±10%
Current Rating (Amps):50 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):12.87Ohm Max
Q @ Freq:40 @ 2.5MHz
Frequency - Self Resonant:8.5MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric)
Supplier Device Package:1206
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):0.079" (2.00mm)
