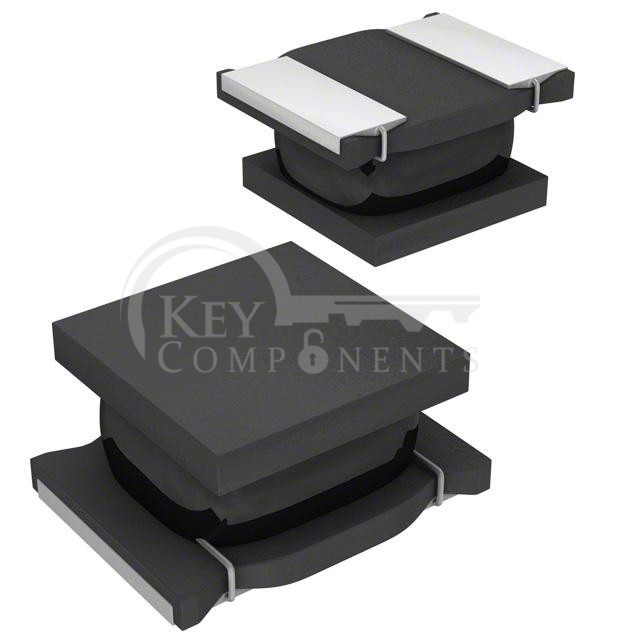

LQH32CN2R2M53L

LQH32CN2R2M53L

Manufacturer Part LQH32CN2R2M53L
Manufacturer Murata Electronics
Description FIXED IND 2.2UH 790MA 126.1 MOHM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):790 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):126.1mOhm Max
Q @ Freq:-
Frequency - Self Resonant:64MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.067" (1.70mm)
