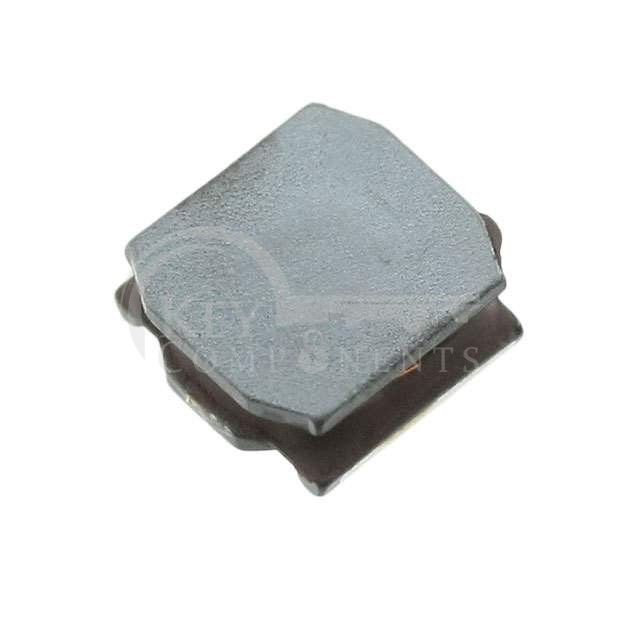

LQH44PN220MP0L

LQH44PN220MP0L

Manufacturer Part LQH44PN220MP0L
Manufacturer Murata Electronics
Description FIXED IND 22UH 790MA 444MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):790 mA
Current - Saturation (Isat):800mA
Shielding:Shielded
DC Resistance (DCR):444mOhm Max
Q @ Freq:-
Frequency - Self Resonant:17MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:1515 (4040 Metric)
Size / Dimension:0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):0.071" (1.80mm)
