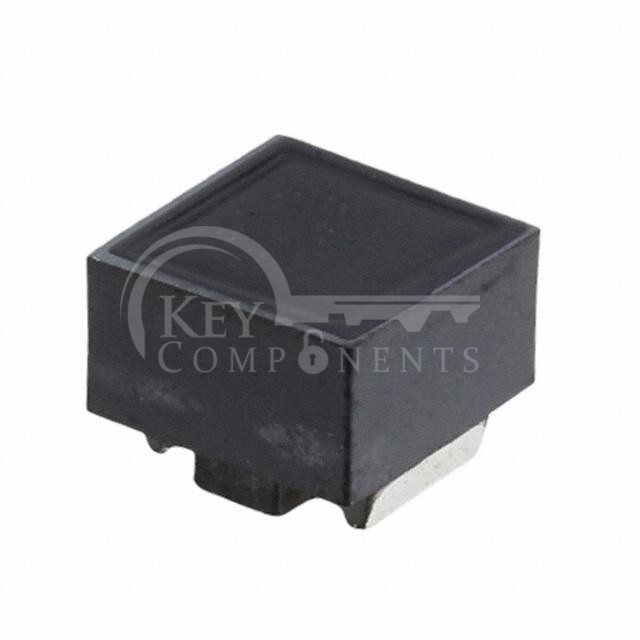

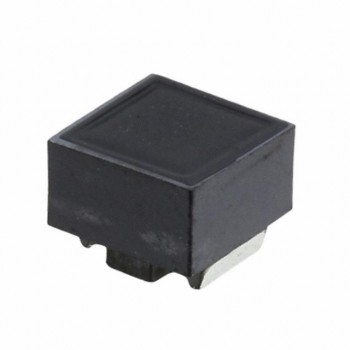

LQH66SN3R3M03L

LQH66SN3R3M03L

Manufacturer Part LQH66SN3R3M03L
Manufacturer Murata Electronics
Description FIXED IND 3.3UH 2.6A 30.8MOHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:3.3 µH
Tolerance:±20%
Current Rating (Amps):2.6 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):30.8mOhm Max
Q @ Freq:-
Frequency - Self Resonant:40MHz
Ratings:-
Operating Temperature:-40°C ~ 80°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:2525 (6363 Metric)
Size / Dimension:0.248" L x 0.248" W (6.30mm x 6.30mm)
Height - Seated (Max):0.197" (5.00mm)
