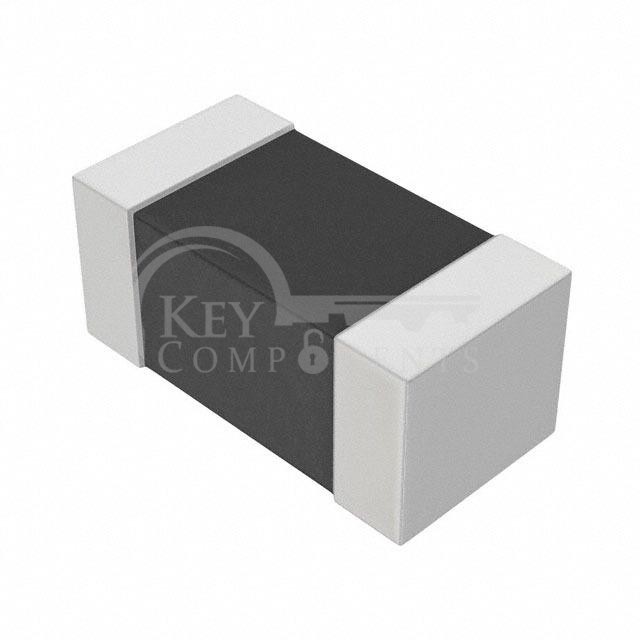

LQM18PN1R5MFRL
| Manufacturer Part | LQM18PN1R5MFRL |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FIXED IND 1.5UH 800MA 288MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Multilayer |
| Material - Core: | Ferrite |
| Inductance: | 1.5 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 800 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Shielded |
| DC Resistance (DCR): | 288mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 100MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 1 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0603 (1608 Metric) |
| Supplier Device Package: | 0603 (1608 Metric) |
| Size / Dimension: | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max): | 0.037" (0.95mm) |
