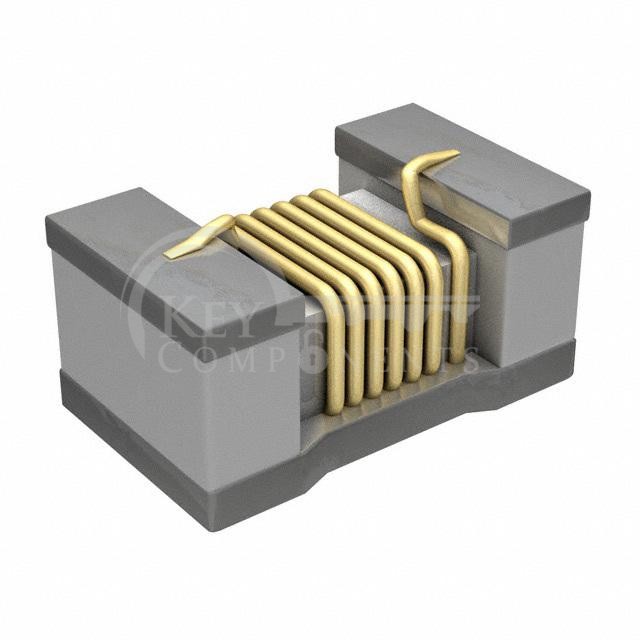

LQW15AN2N9D00D

LQW15AN2N9D00D

Manufacturer Part LQW15AN2N9D00D
Manufacturer Murata Electronics
Description FIXED IND 2.9NH 750MA 70MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:2.9 nH
Tolerance:±0.5nH
Current Rating (Amps):750 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):70mOhm Max
Q @ Freq:20 @ 250MHz
Frequency - Self Resonant:15GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:-
Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):0.024" (0.60mm)
