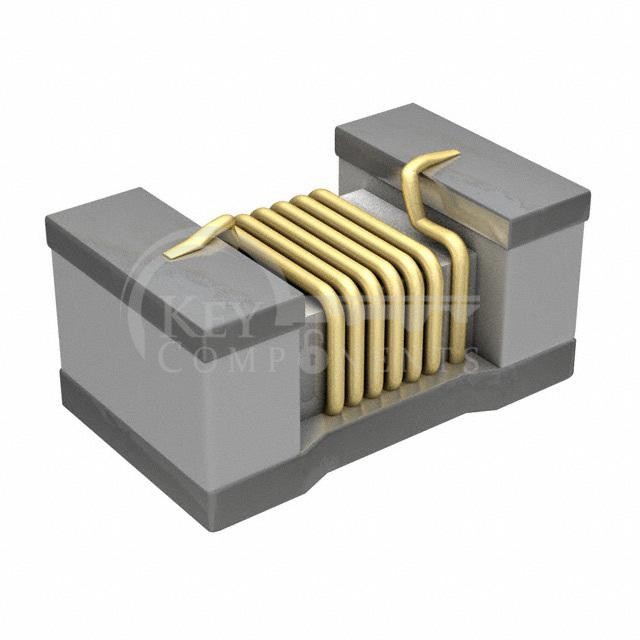

LQW15AN6N8G00D

LQW15AN6N8G00D

Manufacturer Part LQW15AN6N8G00D
Manufacturer Murata Electronics
Description FIXED IND 6.8NH 700MA 90MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:6.8 nH
Tolerance:±2%
Current Rating (Amps):700 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):90mOhm Max
Q @ Freq:25 @ 250MHz
Frequency - Self Resonant:6GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:-
Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):0.024" (0.60mm)
