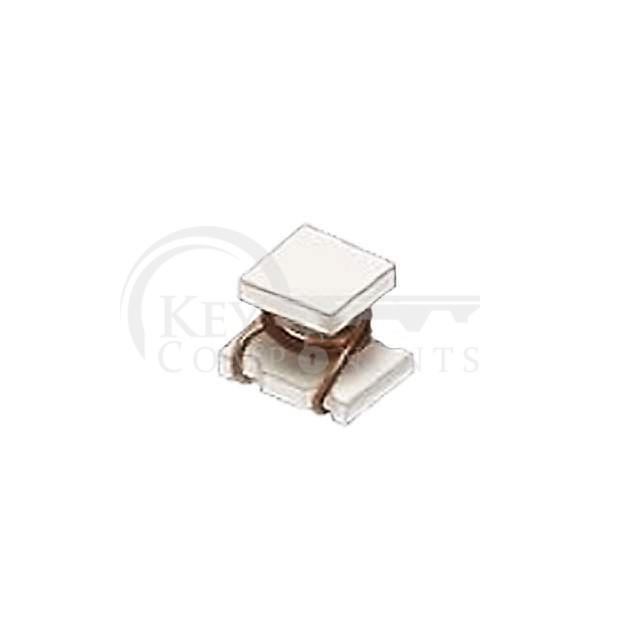

LQW2BHNR22J03L

LQW2BHNR22J03L

Manufacturer Part LQW2BHNR22J03L
Manufacturer Murata Electronics
Description FIXED IND 220NH 240MA 700MOHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Wirewound
Material - Core:Non-Magnetic
Inductance:220 nH
Tolerance:±5%
Current Rating (Amps):240 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):700mOhm Max
Q @ Freq:35 @ 100MHz
Frequency - Self Resonant:500MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.059" W (2.00mm x 1.50mm)
Height - Seated (Max):0.070" (1.78mm)
