48220C

48220C

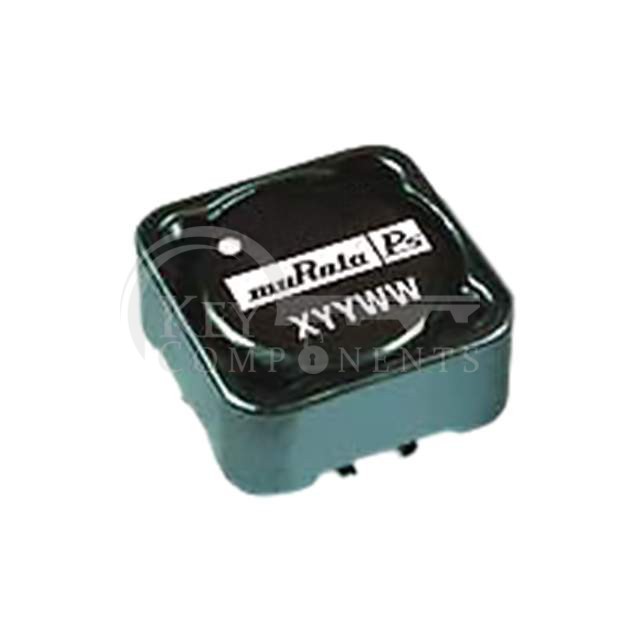

Manufacturer Part 48220C
Manufacturer Murata Power Solutions Inc.
Description FIXED IND 22UH 2.6A 119MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Wirewound
Material - Core:-
Inductance:22 µH
Tolerance:-
Current Rating (Amps):2.6 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):119mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard, 4 Lead
Supplier Device Package:-
Size / Dimension:0.480" L x 0.480" W (12.20mm x 12.20mm)
Height - Seated (Max):0.244" (6.20mm)
