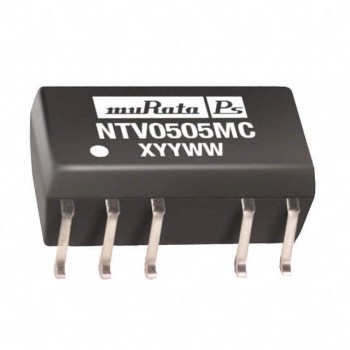

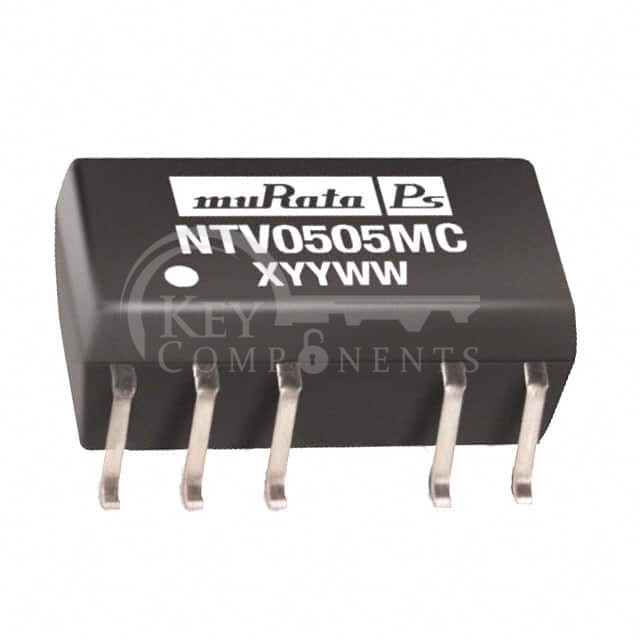

NTV0505MC
| Manufacturer Part | NTV0505MC |
|---|---|
| Manufacturer | Murata Power Solutions Inc. |
| Description | DC DC CONVERTER +/-5V 1W |
| Category | Power Supplies - Board Mount |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Isolated Module |
| Number of Outputs: | 2 |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 5.5V |
| Voltage - Output 1: | 5V |
| Voltage - Output 2: | -5V |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 100mA, 100mA |
| Power (Watts): | 1 W |
| Voltage - Isolation: | 3 kV |
| Applications: | ITE (Commercial) |
| Features: | SCP |
| Operating Temperature: | -40°C ~ 85°C |
| Efficiency: | 71% |
| Mounting Type: | Surface Mount |
| Package / Case: | 22-SMD Module, 10 Leads |
| Size / Dimension: | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) |
| Supplier Device Package: | - |
| Control Features: | - |
| Approval Agency: | - |
| Standard Number: | - |
