CAT3604AHV4-T2
| Manufacturer Part | CAT3604AHV4-T2 |
|---|---|
| Manufacturer | onsemi |
| Description | IC LED DRV RGLTR PWM 30MA 16TQFN |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | DC DC Regulator |
| Topology: | Switched Capacitor (Charge Pump) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 4 |
| Voltage - Supply (Min): | 3V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | - |
| Current - Output / Channel: | 30mA |
| Frequency: | 1MHz |
| Dimming: | Analog, PWM |
| Applications: | Backlight |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |

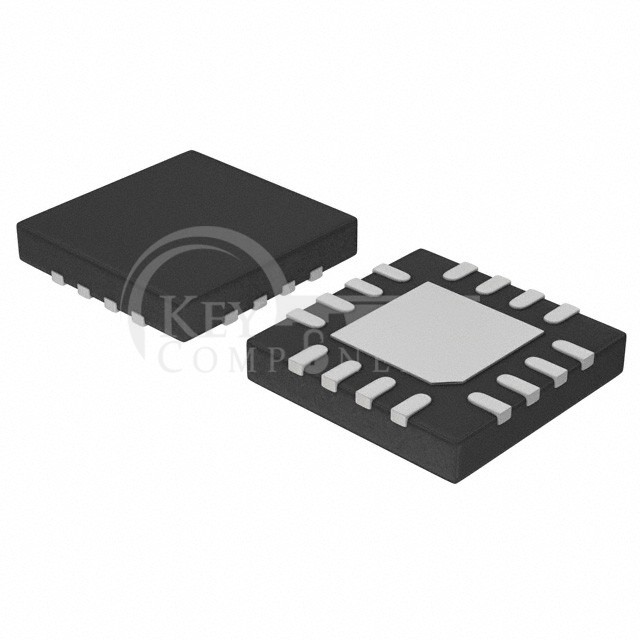

| Package / Case: | 16-WQFN Exposed Pad |
| Supplier Device Package: | 16-TQFN (4x4) |
