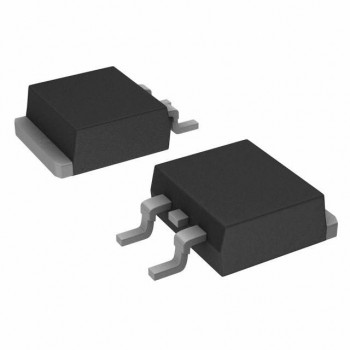

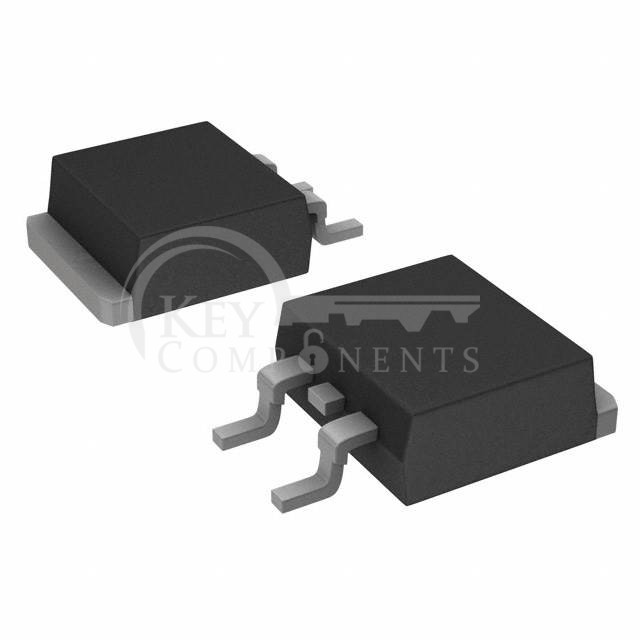

NTB90N02

Manufacturer Part	NTB90N02
Manufacturer	onsemi
Description	MOSFET N-CH 24V 90A D2PAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	24 V
Current - Continuous Drain (Id) @ 25°C:	90A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	5.8mOhm @ 90A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	29 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2120 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	85W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D²PAK
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
