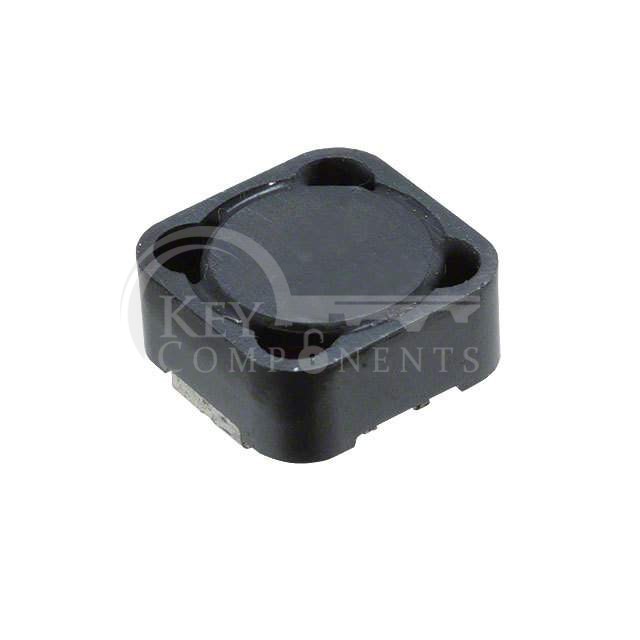

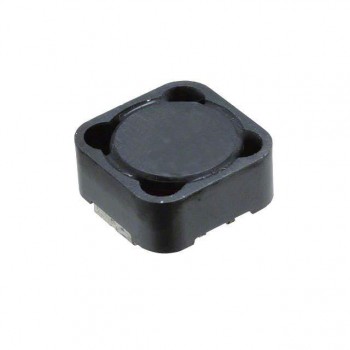

P1170.334NLT

P1170.334NLT

Manufacturer Part P1170.334NLT
Manufacturer Pulse Electronics Power
Description FIXED IND 330UH 820MA 620MOHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Wirewound
Material - Core:-
Inductance:330 µH
Tolerance:±20%
Current Rating (Amps):820 mA
Current - Saturation (Isat):820mA
Shielding:Shielded
DC Resistance (DCR):620mOhm Max
Q @ Freq:-
Frequency - Self Resonant:3MHz
Ratings:-
Operating Temperature:-40°C ~ 130°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max):0.236" (6.00mm)
