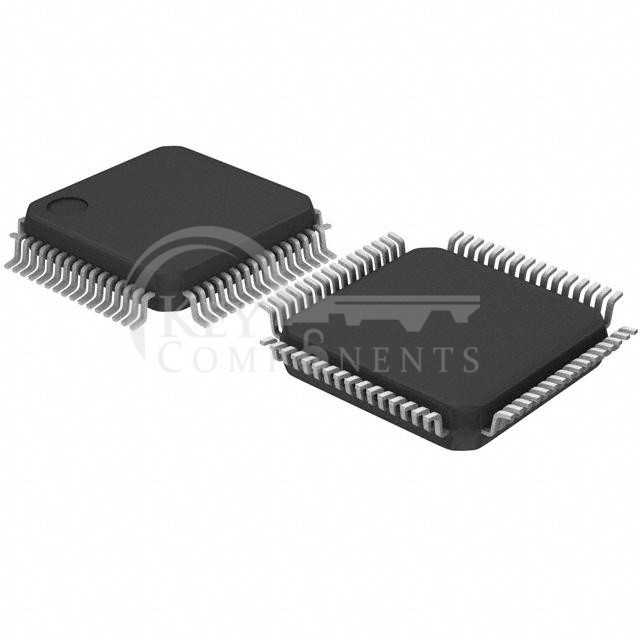

UPD78F9456GB-8EU-A
| Manufacturer Part | UPD78F9456GB-8EU-A |
|---|---|
| Manufacturer | Renesas Electronics America Inc |
| Description | IC MCU 8BIT 16KB FLASH 64LFQFP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Core Processor: | 78K0S |
| Core Size: | 8-Bit |
| Speed: | 5MHz |
| Connectivity: | 3-Wire SIO, UART/USART |
| Peripherals: | LCD, WDT |
| Number of I/O: | 30 |
| Program Memory Size: | 16KB (16K x 8) |
| Program Memory Type: | FLASH |
| EEPROM Size: | - |
| RAM Size: | 512 x 8 |
| Voltage - Supply (Vcc/Vdd): | 5V |
| Data Converters: | A/D 6x10b |
| Oscillator Type: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 64-LQFP |
| Supplier Device Package: | 64-LFQFP (10x10) |
