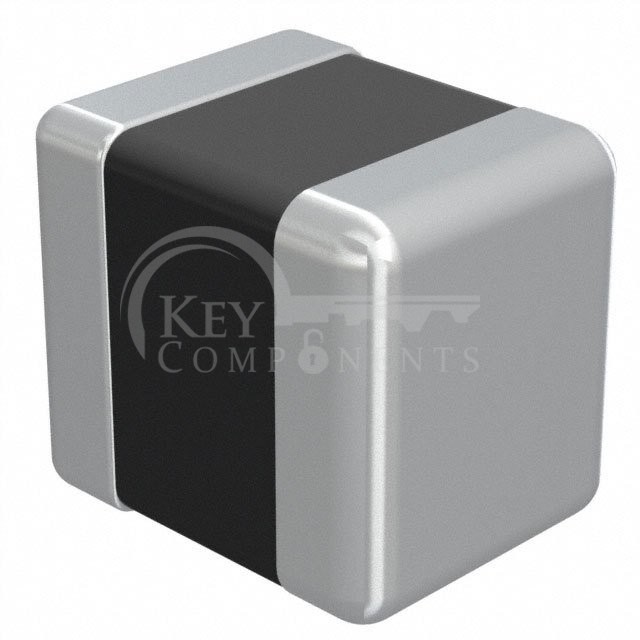

CB2016T2R2M
| Manufacturer Part | CB2016T2R2M |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 2.2UH 1A 169 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 2.2 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 1 A |
| Current - Saturation (Isat): | 510mA |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 169mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 70MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 7.96 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0806 (2016 Metric) |
| Supplier Device Package: | 0806 (2016 Metric) |
| Size / Dimension: | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max): | 0.071" (1.80mm) |
