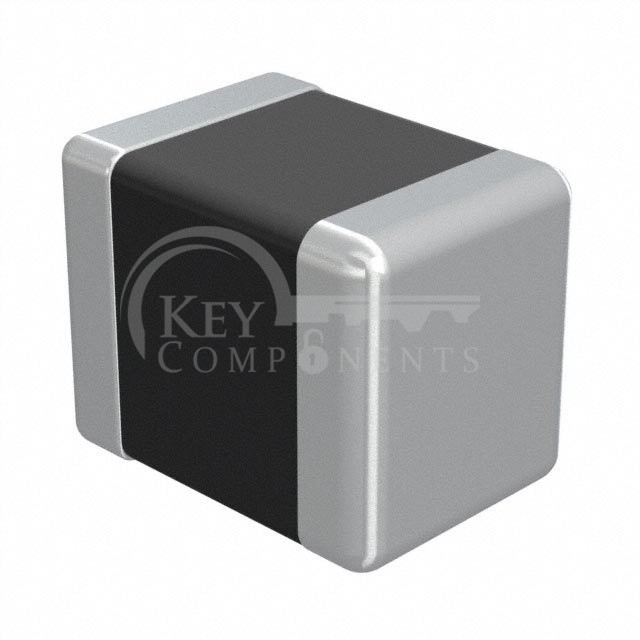

CB2518T680K

CB2518T680K

Manufacturer Part CB2518T680K
Manufacturer Taiyo Yuden
Description FIXED IND 68UH 310MA 1.95OHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:68 µH
Tolerance:±10%
Current Rating (Amps):310 mA
Current - Saturation (Isat):70mA
Shielding:Unshielded
DC Resistance (DCR):1.95Ohm Max
Q @ Freq:-
Frequency - Self Resonant:9.5MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1007 (2518 Metric)
Supplier Device Package:1007 (2518 Metric)
Size / Dimension:0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max):0.079" (2.00mm)
