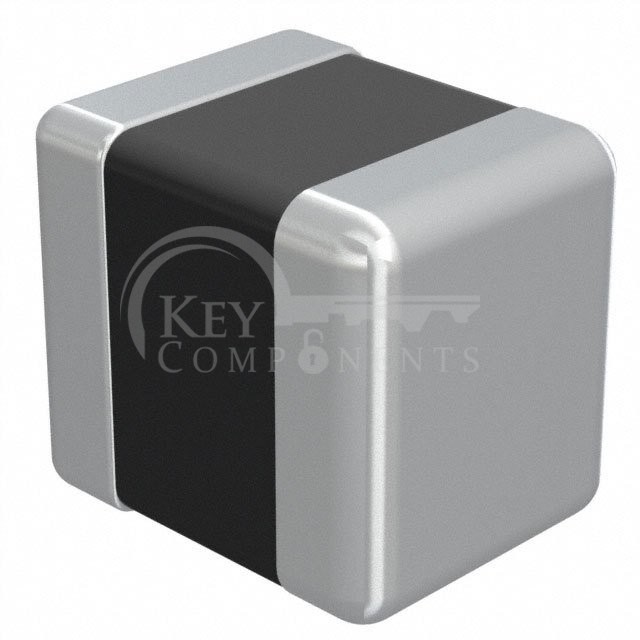

CBC2016T330M

CBC2016T330M

Manufacturer Part CBC2016T330M
Manufacturer Taiyo Yuden
Description FIXED IND 33UH 220MA 3.64OHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:33 µH
Tolerance:±20%
Current Rating (Amps):220 mA
Current - Saturation (Isat):220mA
Shielding:Unshielded
DC Resistance (DCR):3.64Ohm Max
Q @ Freq:-
Frequency - Self Resonant:14MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0806 (2016 Metric)
Supplier Device Package:0806 (2016 Metric)
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.071" (1.80mm)
