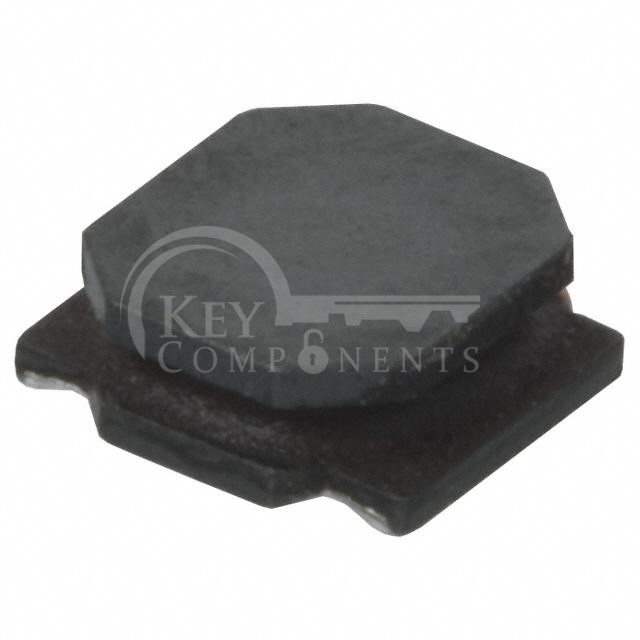

NR3012T1R5N
| Manufacturer Part | NR3012T1R5N |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 1.5UH 1.4A 72 MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 1.5 µH |
| Tolerance: | ±30% |
| Current Rating (Amps): | 1.4 A |
| Current - Saturation (Isat): | 1.36A |
| Shielding: | Shielded |
| DC Resistance (DCR): | 72mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 92MHz |
| Ratings: | - |
| Operating Temperature: | -25°C ~ 120°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max): | 0.047" (1.20mm) |
