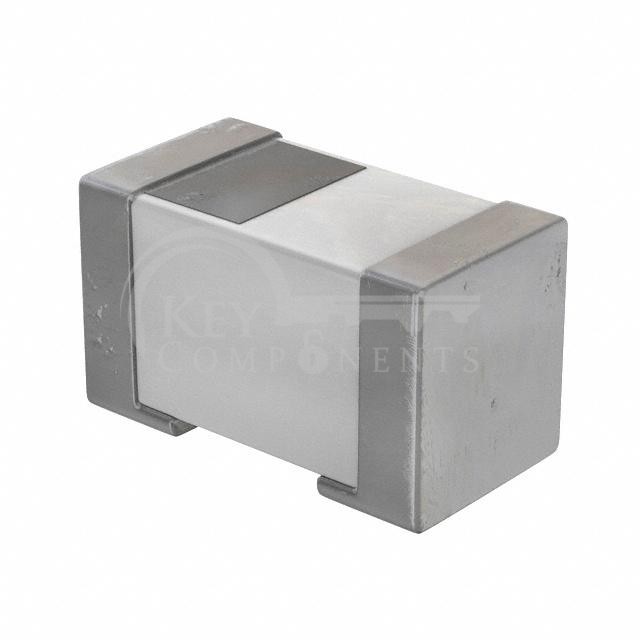

MHQ0603P15NHT000

MHQ0603P15NHT000

Manufacturer Part MHQ0603P15NHT000
Manufacturer TDK Corporation
Description FIXED IND 15NH 180MA 1.5 OHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Multilayer
Material - Core:Ceramic, Non-Magnetic
Inductance:15 nH
Tolerance:±3%
Current Rating (Amps):180 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.5Ohm Max
Q @ Freq:16 @ 500MHz
Frequency - Self Resonant:2.8GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:500 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:0201 (0603 Metric)
Size / Dimension:0.026" L x 0.014" W (0.65mm x 0.35mm)
Height - Seated (Max):0.016" (0.40mm)
