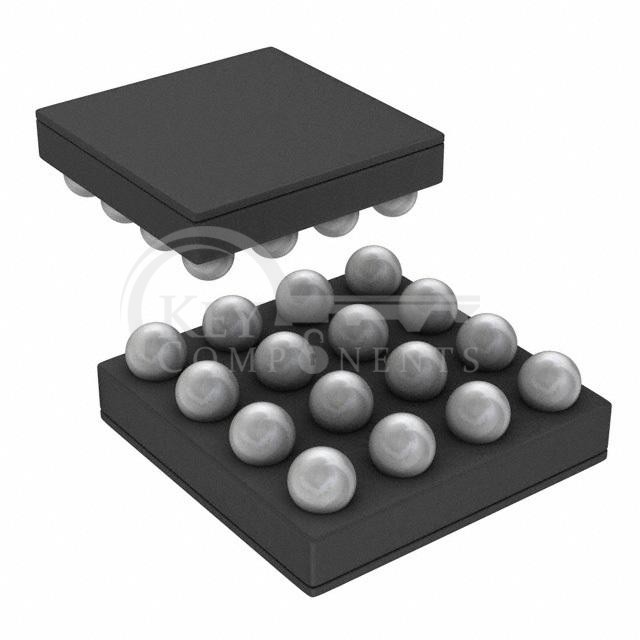

LM3560TLX-20/NOPB
| Manufacturer Part | LM3560TLX-20/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC LED DRVR RGLTR I2C 1A 16DSBGA |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | DC DC Regulator |
| Topology: | Step-Up (Boost) |
| Internal Switch(s): | Yes |
| Number of Outputs: | 2 |
| Voltage - Supply (Min): | 2.5V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | - |
| Current - Output / Channel: | 1A (Flash) |
| Frequency: | 2MHz |
| Dimming: | I²C |
| Applications: | Camera Flash |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 16-WFBGA, DSBGA |
| Supplier Device Package: | 16-DSBGA (2.5x2.12) |
