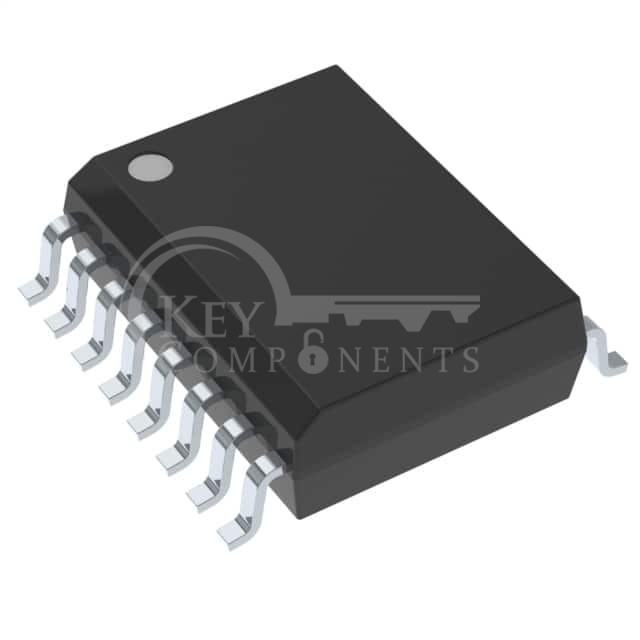

UCC12050DVER

Type	Description
Product Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V, 5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	140mA, 100mA
Power (Watts):	500 mW
Voltage - Isolation:	5 kV
Applications:	ITE (Commercial), Laboratory, Medical
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 125°C (With Derating)
Efficiency:	60%
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Size / Dimension:	0.41" L x 0.30" W x 0.10" H (10.3mm x 7.5mm x 2.7mm)
Supplier Device Package:	16-SOIC
Control Features:	Enable, Active High
Approval Agency:	CQC, TUV, UL, VDE
Standard Number:	-
