744314076

744314076

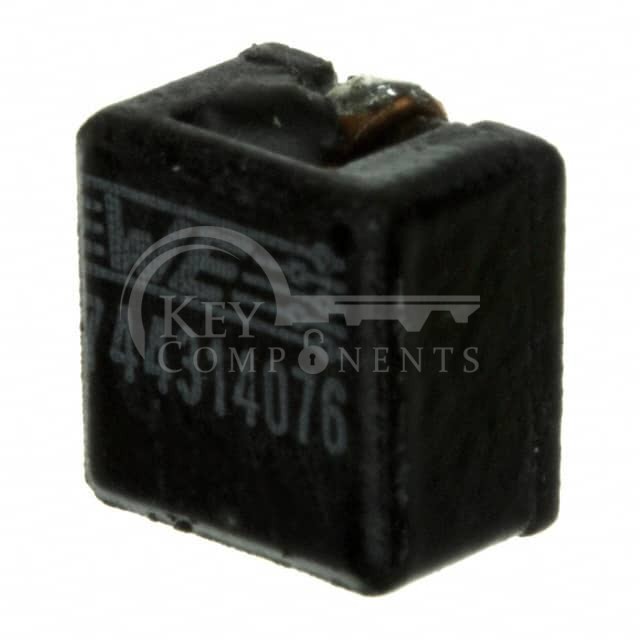

Manufacturer Part 744314076
Manufacturer Würth Elektronik
Description FIXED IND 760NH 15.5A 2.25 MOHM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Wirewound
Material - Core:-
Inductance:760 nH
Tolerance:±20%
Current Rating (Amps):15.5 A
Current - Saturation (Isat):15A
Shielding:Shielded
DC Resistance (DCR):2.25mOhm
Q @ Freq:-
Frequency - Self Resonant:200MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:7050
Size / Dimension:0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max):0.197" (5.00mm)
