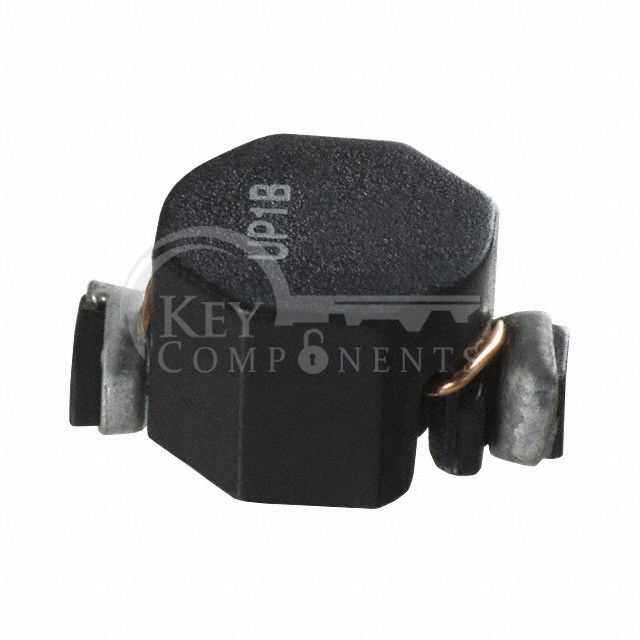

UP1B-470-R
| Manufacturer Part | UP1B-470-R |
|---|---|
| Manufacturer | Eaton - Electronics Division |
| Description | FIXED IND 47UH 720MA 474MOHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 47 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 720 mA |
| Current - Saturation (Isat): | 870mA |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 474mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.350" L x 0.240" W (8.89mm x 6.10mm) |
| Height - Seated (Max): | 0.197" (5.00mm) |
