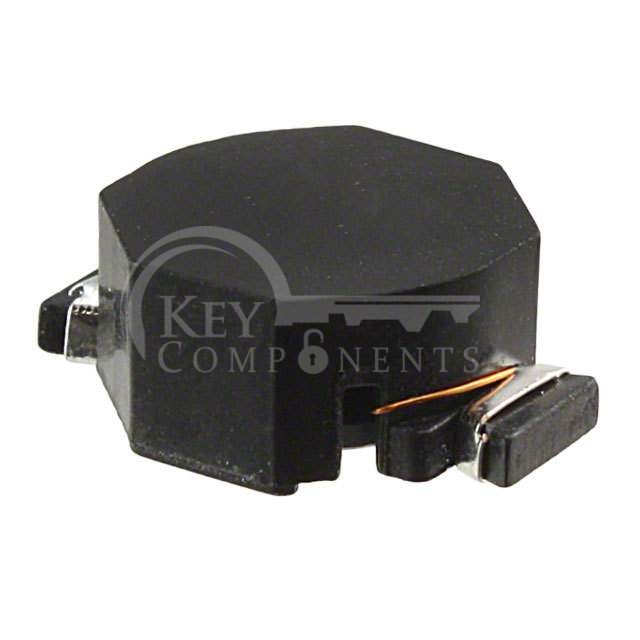

UP2B-3R3-R
| Manufacturer Part | UP2B-3R3-R |
|---|---|
| Manufacturer | Eaton - Electronics Division |
| Description | FIXED IND 3.3UH 6.5A 12.8MOHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 3.3 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 6.5 A |
| Current - Saturation (Isat): | 5.1A |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 12.8mOhm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.550" L x 0.410" W (13.97mm x 10.41mm) |
| Height - Seated (Max): | 0.236" (6.00mm) |
