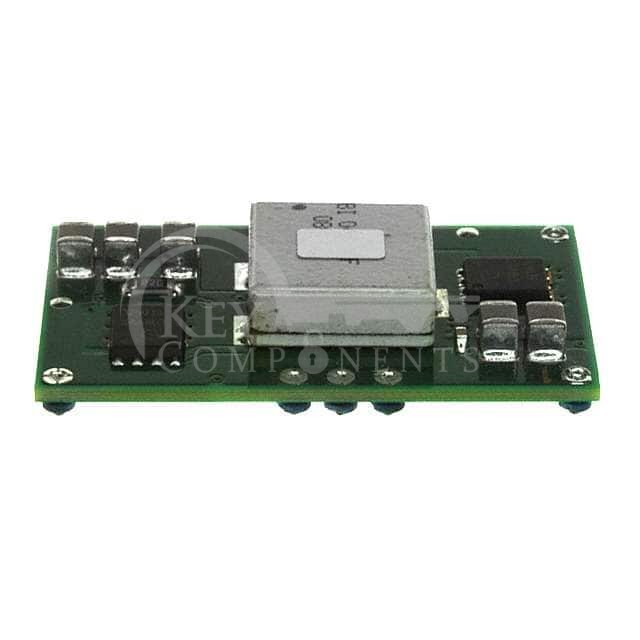

PTH03020WAZ
| Manufacturer Part | PTH03020WAZ |
|---|---|
| Manufacturer | Artesyn Embedded Power |
| Description | DC DC CONVERTER 0.8-2.5V 55W |
| Category | Power Supplies - Board Mount |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Non-Isolated PoL Module |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 2.95V |
| Voltage - Input (Max): | 3.65V |
| Voltage - Output 1: | 0.8 ~ 2.5V |
| Voltage - Output 2: | - |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 22A |
| Power (Watts): | 55 W |
| Voltage - Isolation: | - |
| Applications: | ITE (Commercial) |
| Features: | Remote On/Off, OTP, SCP, UVLO |
| Operating Temperature: | -40°C ~ 85°C |
| Efficiency: | 95% |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-SMD Module |
| Size / Dimension: | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 9.0mm) |
| Supplier Device Package: | - |
| Control Features: | - |
| Approval Agency: | - |
| Standard Number: | - |
