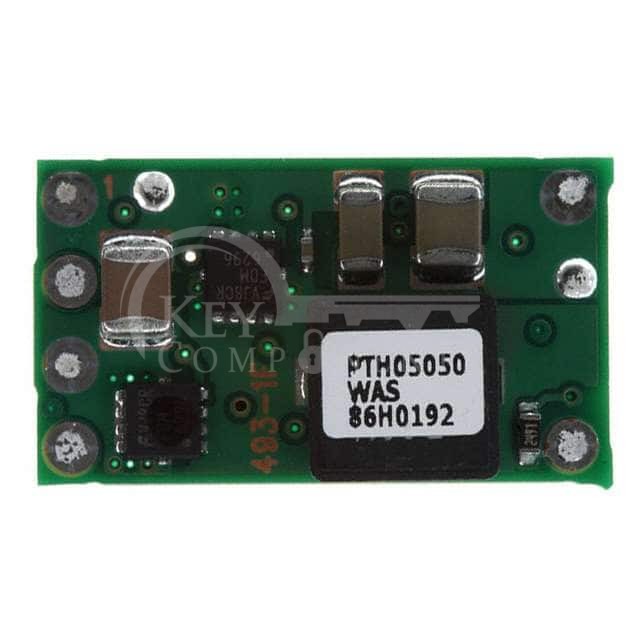

PTH05050WAS
| Manufacturer Part | PTH05050WAS |
|---|---|
| Manufacturer | Texas Instruments |
| Description | DC DC CONVERTER 0.8-3.6V 6A |
| Category | Power Supplies - Board Mount |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Non-Isolated PoL Module |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 5.5V |
| Voltage - Output 1: | 0.8 ~ 3.6V |
| Voltage - Output 2: | - |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 6A |
| Power (Watts): | - |
| Voltage - Isolation: | - |
| Applications: | ITE (Commercial) |
| Features: | Remote On/Off, OCP, UVLO |
| Operating Temperature: | -40°C ~ 85°C |
| Efficiency: | 95% |
| Mounting Type: | Surface Mount |
| Package / Case: | 6-SMD Module |
| Size / Dimension: | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) |
| Supplier Device Package: | - |
| Control Features: | - |
| Approval Agency: | - |
| Standard Number: | - |
