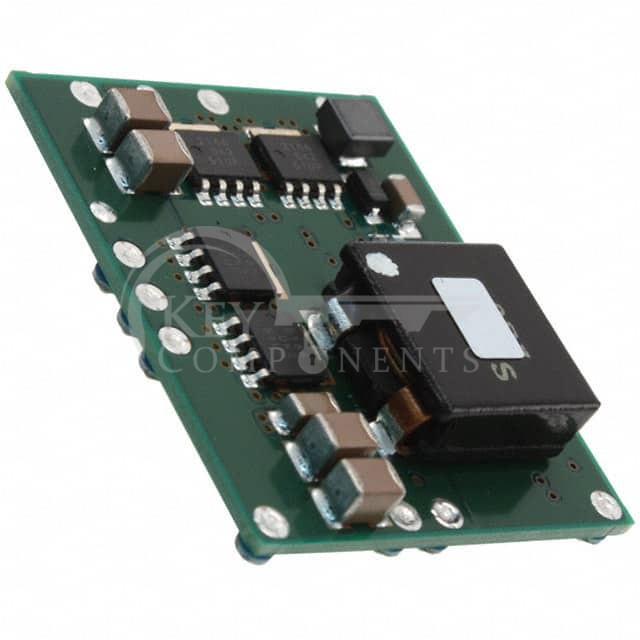

PTH05030WAZT
| Manufacturer Part | PTH05030WAZT |
|---|---|
| Manufacturer | Texas Instruments |
| Description | DC DC CONVERTER 0.8-3.6V 108W |
| Category | Power Supplies - Board Mount |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Non-Isolated PoL Module |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 5.5V |
| Voltage - Output 1: | 0.8 ~ 3.6V |
| Voltage - Output 2: | - |
| Voltage - Output 3: | - |
| Voltage - Output 4: | - |
| Current - Output (Max): | 30A |
| Power (Watts): | - |
| Voltage - Isolation: | - |
| Applications: | ITE (Commercial) |
| Features: | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature: | -40°C ~ 85°C |
| Efficiency: | 94% |
| Mounting Type: | Surface Mount |
| Package / Case: | 13-SMD Module |
| Size / Dimension: | 1.37" L x 1.12" W x 0.38" H (34.8mm x 28.5mm x 9.6mm) |
| Supplier Device Package: | - |
| Control Features: | - |
| Approval Agency: | - |
| Standard Number: | - |
